Cumulonimbus Clouds Viewed with the 6.7 Micron Channel

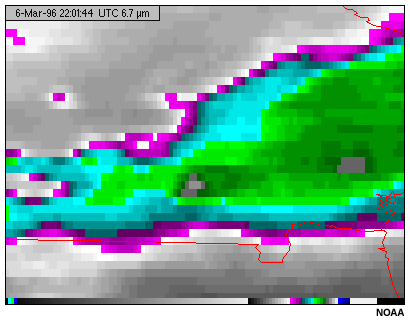

This image shows  cumulonimbus clouds viewed with the GOES-8 6.7 micron water vapor channel

• Very low brightness temperature
• New storms shown by appearance of cloud within water vapor region
• Very good signal to noise provides accurate measure of cloud top temperature in thick anvil and overshooting top areas
• Thinner cirrus at anvil edge colder than in 10.7 channel
