Water Vapor (6.7 micron)

Limb Darkening 2 (Page 11 of 17)

Return to the previous menu.

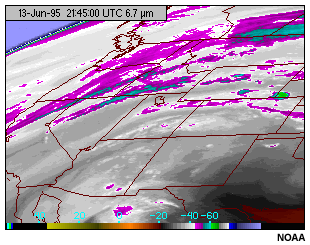

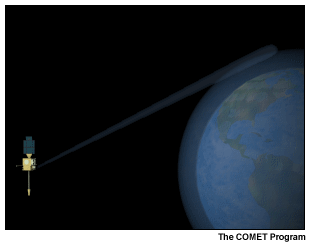

A graphic of GOES scanning at angles greater than sixty degrees A GOES-8 6.7 micron water vapor channel image showing the limb effect/cooling brightness temperatures as scan angle increases

In the water vapor image on the right, notice that brightness temperatures become progressively colder toward the edge of the disk once the scan angle is greater than 60 degrees.
